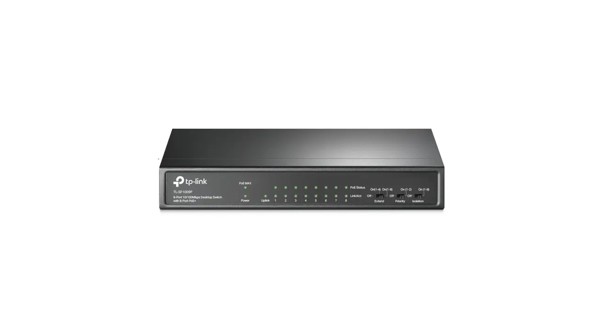

TP-Link TL-SF1009P 9 Port Desktop Switch

Arabirim

• 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports)
• AUTO Negotiation
• AUTO MDI/MDIX

Ağ Medyası

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)

Fan Sayısı

Fanless

Fiziksel Güvenlik Kilidi

Yes

Harici Güç Kaynağı

External Power Adapter (Output: 53.5VDC / 1.31A)

Paket Yönlendirme Hızı

1.3392 Mpps

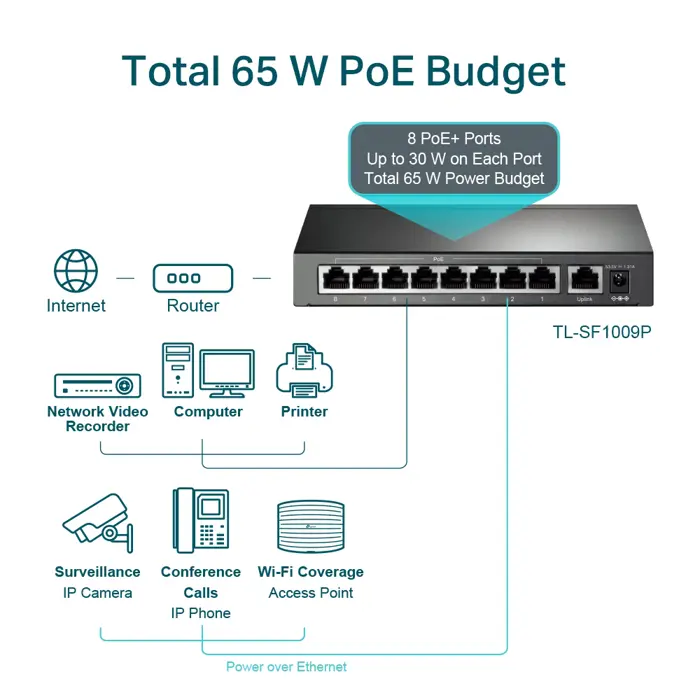

PoE Portları (RJ45)

• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8
• Power Supply: 65 W

MAC Adres Tablosu

2K

Jumbo Frame

2 KB

Switching Kapasitesi

1.8 Gbps

Boyutlar ( W X D X H )

6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)

Maks. Güç Tüketimi

• 3.6 (220/50 Hz. no PD connected)
• 77.08 (220/50 Hz. with 65 W PD connected)

Max Heat Dissipation

• 12.28 BTU/h (no PD connected)
• 262.84 BTU/h (with 65 W PD connected)

İletim Metodu

Store-And-Forward

Gelişmiş Fonksiyonlar

• Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)
• Priority Mode Button (Ports 1–2)
• Isolation Mode Button (Ports 1–8)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

Sertifika

FCC, CE, RoHS

Paket İçeriği

• TL-SF1009P
• Power Adapter
• Installation Guide

Ortam

• Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
